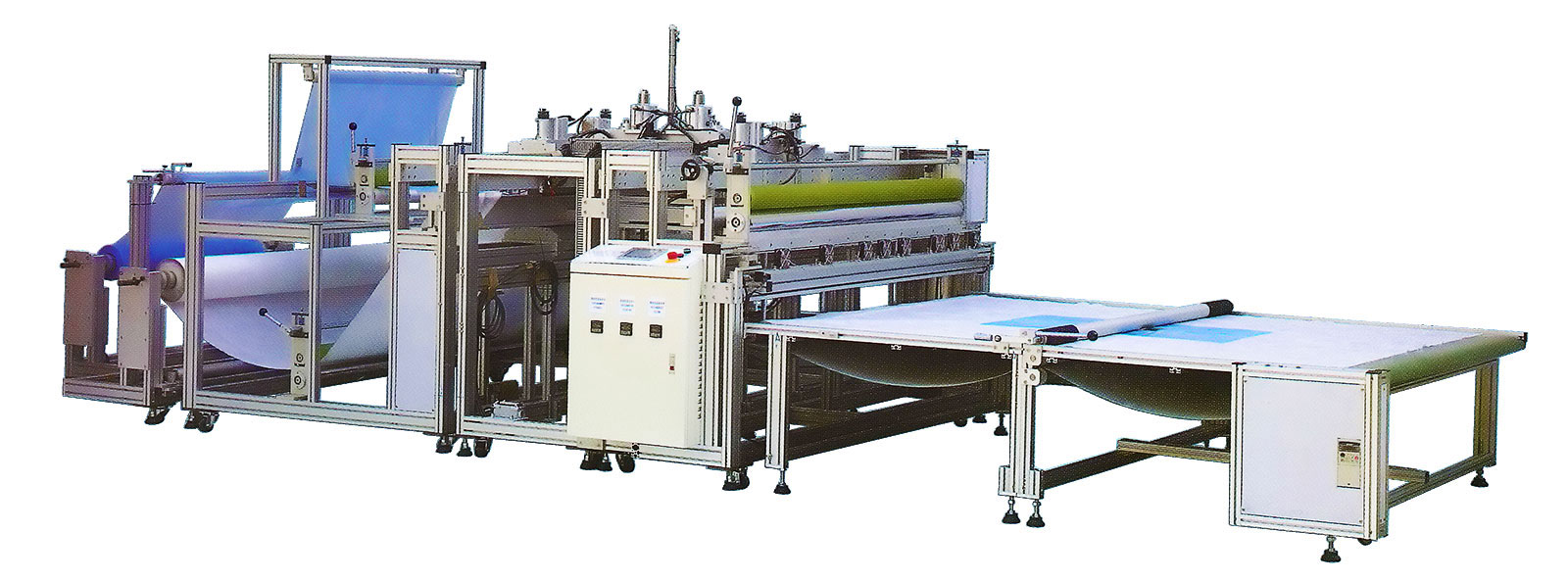

Laparotomy drape sheet production equipment
The production line is specially designed to produce disposable surgical laparotomy sheets, which are used in the operating rooms in hospitals. The equipment uses ultrasonic technology and melting technology with electric heating.

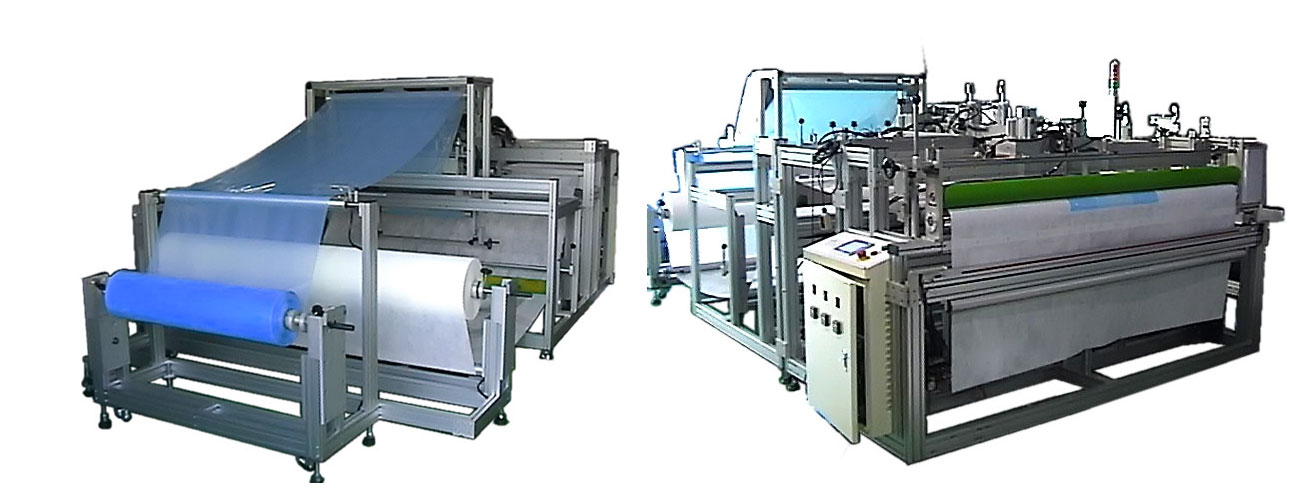

Laparotomy Drape Sheet Production Line Overview
Features & Advantages
Production Line has a number of features and advantages:
- Fully automated disposable laparatomy drape sheet making machine.
- Only 1 operator is required to operate the equipment.
- The motion of machine controlled by PLC.
- 2 kinds of products separated sealed by ultrasonic and electric-heater.
Technical data of the disposable drape sheet making machine
| Parameter | Value | |
|---|---|---|
| Product dimension | 2000 mm × 2400 mm | |
| Throughput | 6 - 7 pcs/min | |
| Power consumption | 11 kW | |
| Standard Voltage | single-phase 220V / 50 / 60Hz. (other voltage at the request of the customer) | |
| Dimension of equipment | 7500 mm (length) × 2370 mm (width) × 1900 mm (height) | |

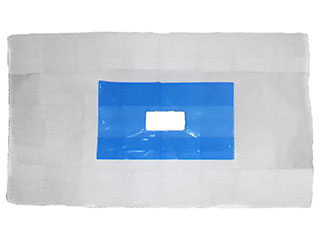

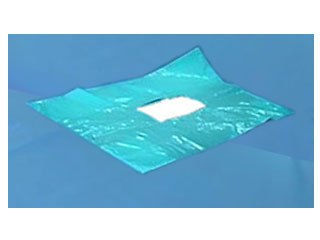

Samples of products
Disposable surgical laparotomy drape sheets widely used in the operating rooms in hospitals.
