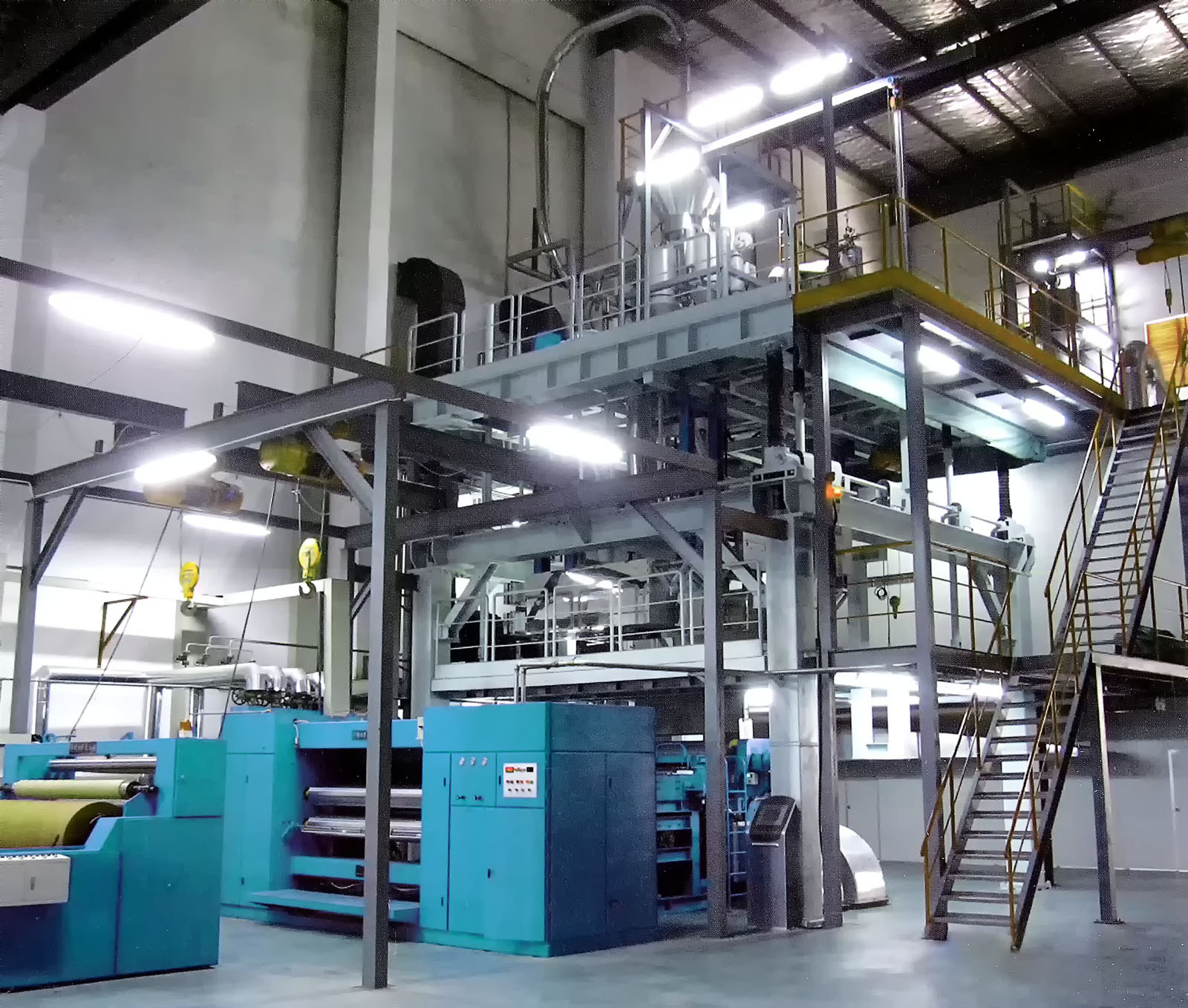

Spunbond Thermo Bonding Non-woven Production Line
Introduction
Both PET and PLA spunbond thermo bonding nonwovens con be used as filtrating materiaI, household textile, transfer printing, decorative material, ground film, interlining cloth, composite material and so on, and PLA nonwovens belong to green degradable materials.
Overview
Spunbond Thermo Bonding Non-woven Production Line Technical Parameter
| ITEM | UNIT | QUANTITY | |
|---|---|---|---|
| Material | PET | PLA | |
| Denier | dpf | 1.0 - 3.0 | 1.0 - 3.0 |
| Component type | Round, mounted | ||
| Production Specification | g/m2 | 15 - 150 | 20 - 150 |
| Production Width | m | 1.6, 2.6, 3.2 | |
| Output | tonn/year | 2100, 3400, 4100 | |
| Pack Type | Square single spinneret, down loaded | ||
| Drawing Type | Slot air drawing | ||
Technical Advantage
The lifting electrical platform is convenient for process adjustment: the web forming equipment has high running speed and high deviation correcting fineness, and in cross direction, air draft is uniform and adjustable.
It adopts PLC central control system to realize multiple intelligent linkage and protection function's auto-control and intelligent management.
It adopts slot air drawing with single spinneret technology to produce nonwovens with uniform surface, and it is more suitable for nonwovens with light weight.
